AF
Visit Product Series:
Markets
Applications
Specifications
Working Pressure
500 PSIG to 15,000 PSIG
Working Temperature
-425°F to +100°F
Discharge Gas Temperature
Within 20°F of ambient conditions (standard)
External Fins
6063 aluminum alloy
Fluid Passages
6063 aluminum, 304 / 316 stainless steel, Monel, and electro-polished 316L available
Frame Assembly
Type 6061 aluminum alloy
Material
Aluminum
Model Options
AF9|AF16|AF25|AF36|AF49|AF64|AF81|AF100
Optional units
Up to 30′ extrusion length, 384″ overall height
Options
Monel or electro-polished stainless steel fluid passages|Tube sizes up to 1” OD|Special inlet and outlet connections|Anodized finishes|Frames designed for seismic and wind loads|Special sizes and configurations – including trailer mount and horizontal flow|Gas-cooling or gas-heating applications|Auto-cycling vaporizing systems complete with manifolding, valves, and temperature control systems

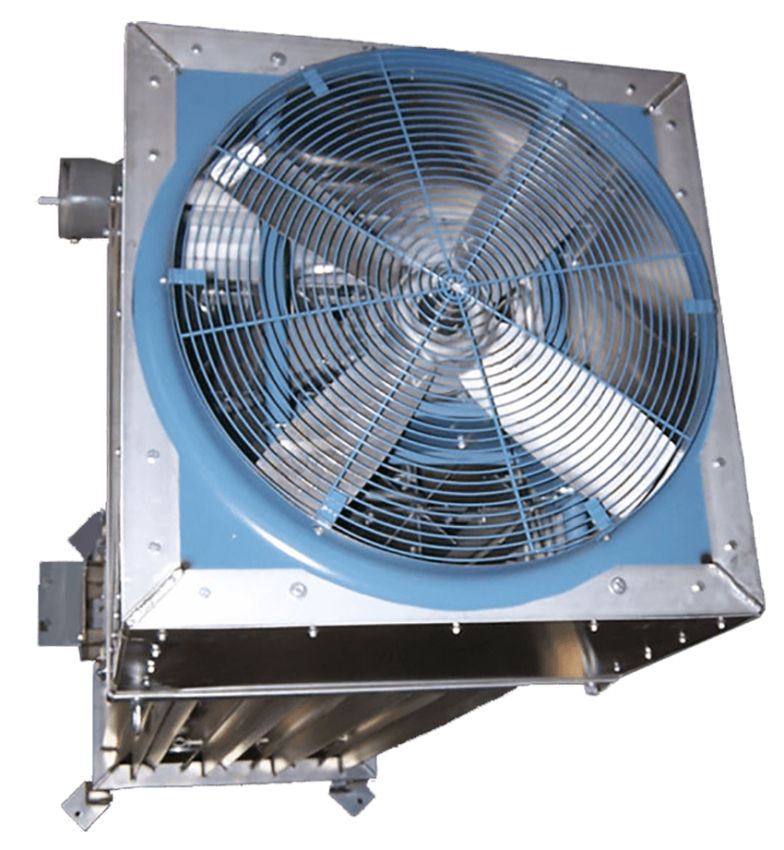

Product Type
Forced Draft
Standard units:
10′ extrusion length, 147″ overall height
Features & Benefits
